Hollyland PYRO 7 Overview
Hollyland’s Pyro 7 Wireless Transceiver Monitor transmits, receives, and monitors high-quality wireless video. This versatile upgrade from the M1 features a bright 7″ touchscreen. It offers dual L-series battery plates and transmission up to 1300 feet. You also get updated HollyOS tools, SD card recording, HDMI/SDI I/O, RTSP streaming, and one transmitter to four receivers. Plus, auto dual-band 2.4/5 GHz hopping ensures reliability.
Broadcast Mode
One Pyro 7 transmitter connects to four receivers in Broadcast mode. Signals stay stable over line-of-sight. Deactivate it, and the transmitter reaches two receivers plus two mobile devices. This setup supports flexible workflows.

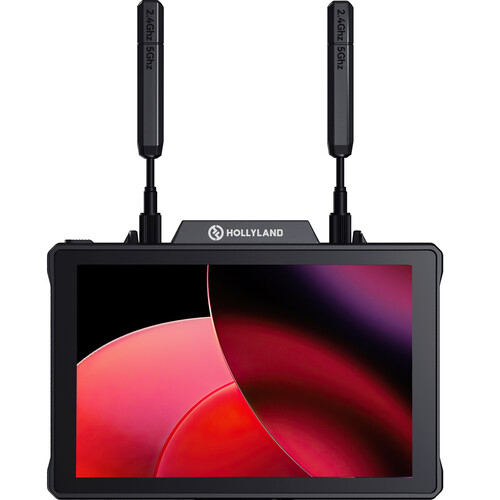

Large, Bright Monitor
The Pyro 7 features a 7″ display with a brightness of 1200 cd/m², so it’s clearly viewable whether you are in bright sunlight or dim environments. The screen brightness is adjustable for optimal performance.

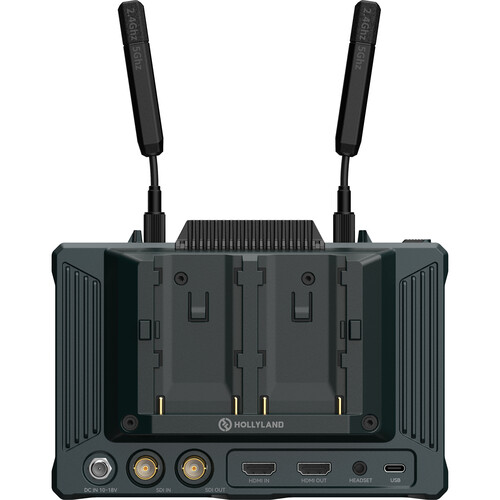

Versatile I/O
The Pyro 7 can be switched to be a transmitter or receiver. When in transmitter mode, the monitor features one HDMI input, one SDI input, one HDMI loop output, and one SDI loop output. When in receiver mode, it features one SDI output, one HDMI output, and one SDI loop output.
Quick Source Switching
The transceiver enables seamless connection with all Pyro series units using a grouping preset. You can group multiple devices and instantly switch monitoring between two cameras by utilizing two customizable buttons.
Long Transmission Range
Utilizing 2.4 and 5 GHz dual-band technology, the Pyro 7 features a stable line-of-sight transmission range of up to 1300′ with a minimal transmission latency of 60ms with no image degradation. There are two transmission modes to choose from: Smooth mode adjusts the transmission for the lowest latency for longer distances, and HD mode optimizes the image with a stable bitrate up to 12 Mb/s, even up to 1300′ away.
Auto Dual-Band Hopping (ADH)
With Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) technologies operating on both 2.4 and 5 GHz bands, the Pyro 7 can automatically choose the clearest channel for reliable and uninterrupted wireless video transmission. These technologies address common issues such as signal interference, low transmission efficiency, and frequency congestion. The omnidirectional high-gain antennas also ensure stable signals in all directions.
RTMP Streaming
With built-in RTMP streaming, you can easily stream video to popular live broadcast or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and more.

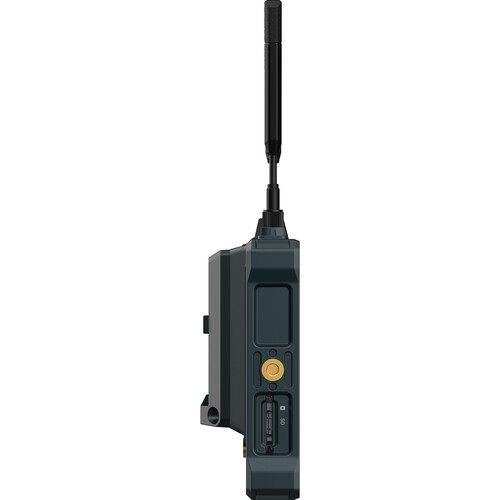

Video Recording to SD Card
The Pyro 7 features an SD card slot that supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card. You can also use an SD card to apply custom LUTs during video export. It features file organization and supports a streamlined editing workflow. You can also import data from external devices and ingest on-set screenshots, overlaying them onto the current recording screen for scene restoration or replication purposes.
Image Tools
The custom shortcut key feature that can be used for dual-view monitoring can also be used to quickly launch image tools such as waveform, recording, focus assist, and other image analysis functions.

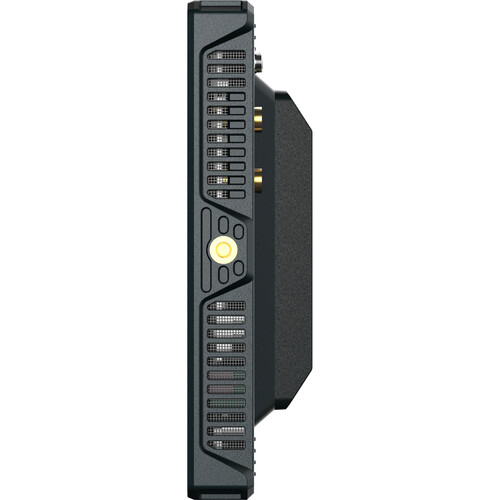

Durable Yet Lightweight Construction
The case of Pyro 7 is made of aerospace-grade magnesium-aluminum alloy with a robust, rigid design that is 30% lighter and better at heat dissipation than aluminum-only models.
